Esset Kit

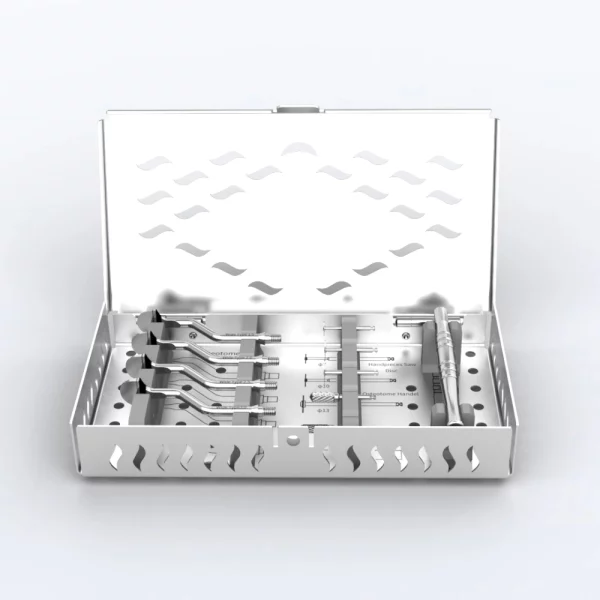

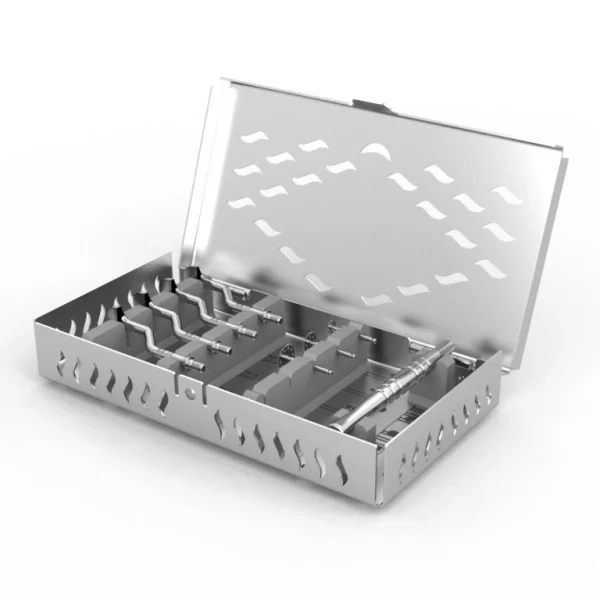

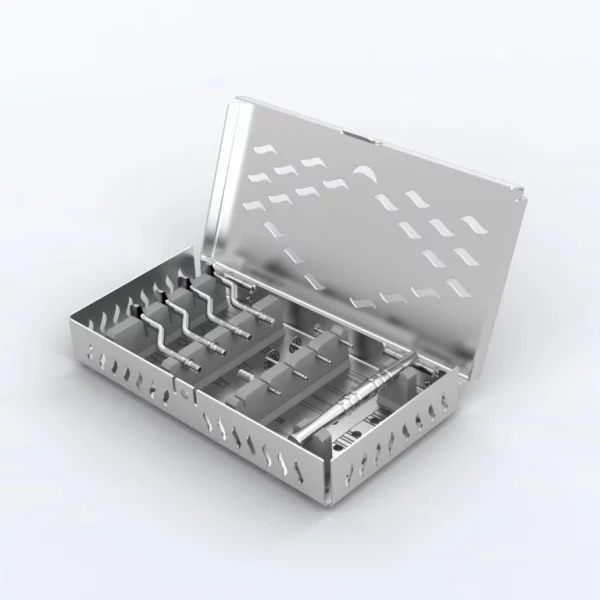

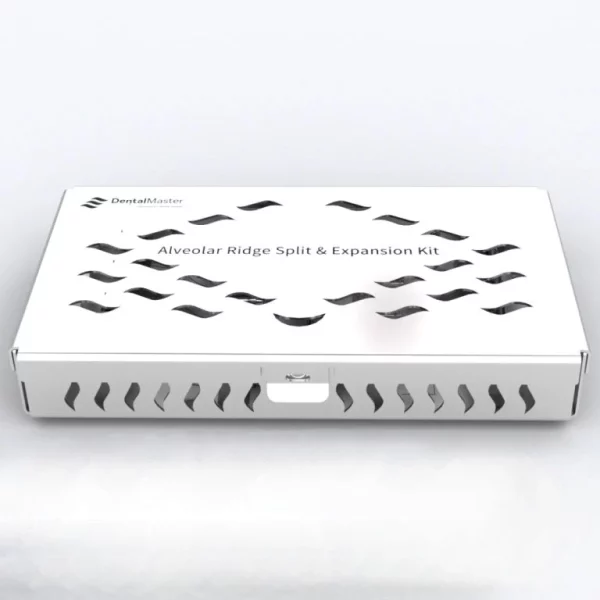

Esset Kit – Advanced Alveolar Ridge Splitting & Expansion Kit is an innovative solution for patients with insufficient bone volume. Through a precisely engineered instrument system, it enables safe and controlled ridge splitting and expansion procedures.

Manufactured from medical-grade stainless steel, the kit offers durability and corrosion resistance. Its core advantage lies in the minimally invasive approach—allowing precise control over the splitting direction and expansion width while maximizing the preservation of periodontal tissues and bone integrity.

Clinically, it is indicated for cases requiring horizontal alveolar ridge augmentation due to insufficient bone width. By creating optimal bone conditions for implant placement, it enhances the feasibility of implantation and ensures long-term surgical stability.

Axe-Style Bone Expander Features

1. Axe-Head Structure for Optimized Force Distribution
   Designed with a front-narrow, rear-wide axe-shaped structure, and a smoothly curved cutting edge, this expander precisely replicates the mechanics of splitting force. The sharp front end ensures efficient penetration into the bone, while the widened rear disperses pressure, significantly reducing surgical risks associated with localized stress concentration during ridge splitting.

2. Ergonomic Curved Design for Enhanced Surgical Field Visibility
   The uniquely curved blade is tailored to the alveolar ridge morphology, naturally avoiding soft tissue obstruction during surgery. This design provides a clearer surgical view, minimizes blind spots, and enhances both precision and safety during procedures.

3. Modular Blade System for Flexible Adaptation
   Featuring a detachable blade-handle structure, the system allows for quick assembly and replacement. Worn-out components can be individually replaced after surgery, extending the instrument’s lifespan and reducing maintenance costs.

4. Four Size Variations for Precise Anatomical Matching
   Available in four different sizes—narrow, medium, wide, and extra-wide—the expander accommodates various alveolar ridge widths. This personalized selection ensures optimal adaptation to bone structures, maintaining consistency and stability in surgical outcomes.

Three Blade Sizes for Precision Adaptation

Φ7.0mm, Φ10mm, Φ13mm
(Designed with millimeter-level increments to accommodate various surgical scenarios and ensure precision in operation.)

5mm Diameter Trimming Drill

Quickly and efficiently refines the alveolar ridge for optimal surgical precision.

Esset Kit Indications – Solution for Narrow Alveolar Ridge Augmentation

Designed for cases with insufficient alveolar ridge width, the Esset Kit utilizes controlled ridge-splitting techniques and progressive lateral bone expansion to precisely reshape the alveolar ridge in three dimensions. This approach effectively increases bone width and volume, creating sufficient biological space and mechanical support for implant placement, ultimately enhancing the long-term stability of implant restorations.
