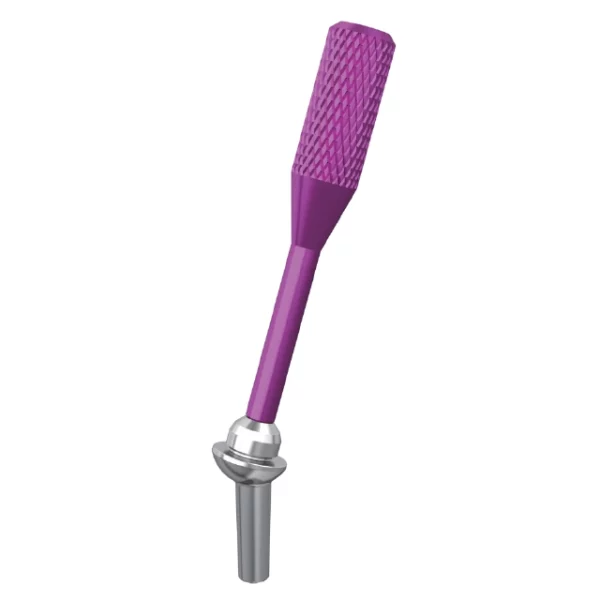

Fixed-Detachable Abutment Bicon Compatible

The fixed-detachable abutment is a fixed-detachable abutment designed specifically for the Bicon implant system. Made from medical-grade titanium alloy (Ti-6Al-4V), it offers exceptional strength and biocompatibility, ensuring long-term stability in restorations.

Available in 0° and 15° angulations, it precisely accommodates implant placement angles and occlusal force distribution. With multiple Well height options (2.0mm, 2.5mm, and 3.0mm), it adapts flexibly to different gingival anatomies, optimizing both aesthetics and functionality.

As a key component in Bicon-compatible restorations, its integrated design provides secure fixation with easy removability, simplifying maintenance and adjustments. Ideal for full-arch or partial-arch fixed restorations, it balances long-term durability and clinical efficiency, ensuring a reliable and lasting prosthetic outcome.

Specification

Fixed-Detachable Abutments with a 2.0mm Post

Diameter	Height	Angle	Post	Part Number
4.0mm	3.0mm	0°	2.0mm	260-100-003
4.0mm	3.0mm	15°	2.0mm	260-100-015
4.0mm	5.0mm	0°	2.0mm	260-100-004
4.0mm	5.0mm	15°	2.0mm	260-100-115

Fixed-Detachable Abutments with a 2.5mm Post

Diameter	Height	Angle	Post	Part Number
4.0mm	3.0mm	0°	2.5mm	260-250-213
4.0mm	3.0mm	15°	2.5mm	260-250-215
4.0mm	5.0mm	0°	2.5mm	260-250-214
4.0mm	5.0mm	15°	2.5mm	260-250-255

Fixed-Detachable Abutments with a 3.0mm Post

Diameter	Height	Angle	Post	Part Number
4.0mm	3.0mm	0°	3.0mm	260-300-003
4.0mm	3.0mm	15°	3.0mm	260-300-015
4.0mm	5.0mm	0°	3.0mm	260-300-004
4.0mm	5.0mm	15°	3.0mm	260-300-115
