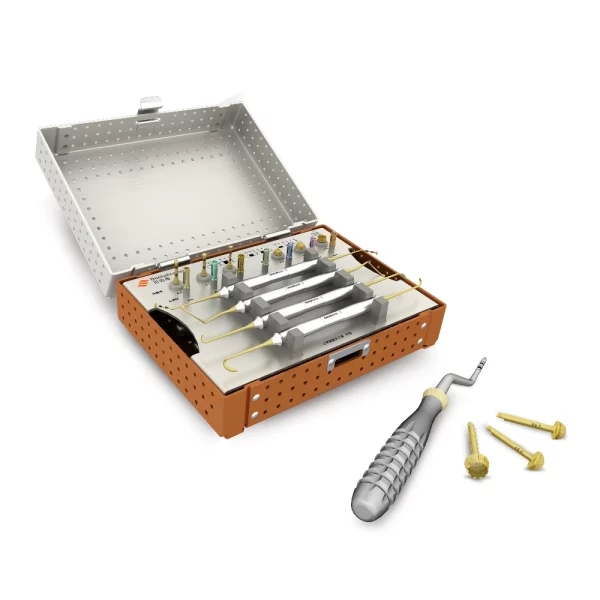

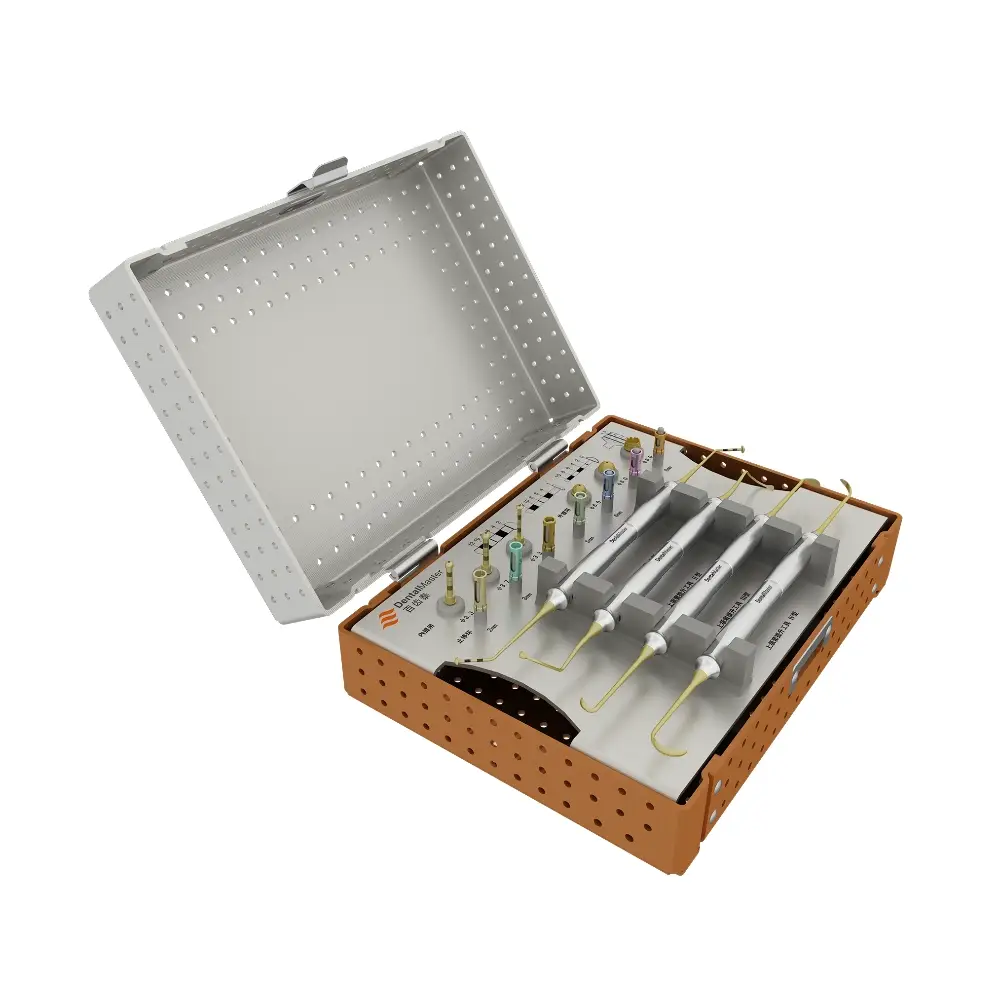

Sinus Lift Kit

The Sinus Lift Kit is a professional tool for dental implant surgery, precisely designed and built for efficient and safe maxillary sinus lifting. Through a series of sophisticated structures, the kit greatly simplifies the previously complex and risky process of accessing the maxillary sinus, making the operation smoother and more controllable.

During the procedure, the Sinus Lift Kit can significantly reduce the risk of membrane perforation, a complication that requires special vigilance during maxillary sinus lift operations. By using advanced materials and processes, the kit ensures a smooth operation while minimizing unnecessary pain and recovery time for patients.

As a powerful tool for dental professionals, the Sinus Lift Kit not only enhances the convenience and efficiency of the procedure but, more importantly, provides strong support for the stability of the implant. This means that during the recovery process after the operation, the implant can be more securely anchored in the jawbone, thereby improving the success rate of the procedure and overall patient satisfaction.

With its excellent performance, fine craftsmanship, and reliable support, the Sinus Lift Kit has become the ideal choice for dental professionals seeking efficient, safe, and successful surgical results.





Sinus Lift Kit Specification

Product Name	Part No.	Specification
S-Reamer	7211300010	Φ3.3
S-Reamer	7211300020	Φ3.7
S-Reamer	7211300030	Φ3.3
Stopper	7211300040	Φ4×2mm
Stopper	7211300050	Φ4×3mm
Stopper	7211300060	Φ4×4mm
Stopper	7211300070	Φ4×5mm
Stopper	7211300080	Φ4×6mm
Stopper	7211300090	Φ4×7mm
Stopper	7211300100	Φ4×8mm

S-Reamer	7211300110	Φ6.0
S-Reamer	7211300120	Φ8.0
S-Reamer	7211300130	Φ8.0
Separator	7211300140	Φ3/Φ3.5
Separator	7211300150	Φ2.5
Separator	7211300160	Φ3.2/Φ3.7
Separator	7211300170	Φ3/Φ3.2
Sinus Lifter	7211300190	Φ1.6/2.8×160
Sinus Lifter	7211300200	Φ2.3/2.8×160
Sinus Lifter	7211300210	Φ2.65/3.2×160
Sinus Lifter	7211300220	Φ2.75/3.8×160
Sinus Lifter	7211300230	Φ2.9/4.3×160
Box	7211300180



I type ф3.3 and ф3.7 Bone Grinding Drills:

The ф3.3 and ф3.7 bone grinding drills provide an effective cooling effect during internal flushing. When preparing holes, water pressure can be utilized to enhance the integrity of the sinus membrane.



 type ll ф3.3 Bone Grinding Drill:

The ф3.3 bone grinding drill is beneficial for sinus membrane separation and is specifically designed for external lifting to prepare side windows.



Stopper for Dental Bone Grinding Drill Type I and II

The stopper is an essential component designed for use with both Type I and Type II dental bone grinding drills. It provides precise control during procedures, ensuring optimal performance while enhancing safety and efficiency. The stopper facilitates accurate drilling depth and helps prevent unwanted penetration, thereby protecting surrounding tissues during dental surgeries. This innovative tool is crucial for achieving the best outcomes in dental implant procedures and other surgical applications.



Type III Bone Grinding Drill (φ6.0/φ8.0)

The Type III bone grinding drill, available in φ6.0 and φ8.0 sizes, is specifically designed for the windowed grinding technique in dental procedures. Operating at rotational speeds of 800 to 1200 RPM, this drill provides efficient and precise cutting action.

One of its key benefits is its ability to minimize the risk of mucosal perforation during the window-opening process, ensuring greater safety for patients. This drill is an essential tool for dental professionals looking to enhance the effectiveness of their surgical techniques while maintaining a focus on patient safety.



Type IV Bone Grinding Drill (φ8.0)

The Type IV bone grinding drill, featuring an φ8.0 size, is specifically designed for fenestrated bone preservation surgery. Operating at rotational speeds of 800 to 1200 RPM, this drill facilitates precise and effective bone removal.

Similar to bone extractors, the Type IV drill simplifies the bone extraction process while requiring external water cooling to maintain optimal temperatures during use. This design enhances the safety and efficiency of surgical procedures, making it an essential tool for dental professionals focused on preserving bone integrity while performing complex surgeries.







Separator

Clear separation of sinus membrane and increased space.

Sinus Lifter

It can laterally compress the bone wall, increase bone density, and protect the bone.
